George H. Cuthbertson Archives

Yacht Names

Silent Partner, Celtic Fire, Elation, Departed, Time 1, Bananas, Rockin Chair, Silver Bullet, Tomahawk, Aidhu, Mephisto, Apparition, Sly Fox, Sorcery, Seldom Rest, Aloha, Resolute, Magic

DWG #

75-13,

MMOTGL Accession Number

2008.0012.0020 (1-24),

2008.0012.0089 (1),

2001.0066.0473 (1-2),

2012.0010.0022.0012

Designer / Draughtsman

C&C Design Group,

Killing, Steve

Project Manager

White, Murray

Year of Design

1975

Builder

C&C Yachts Limited

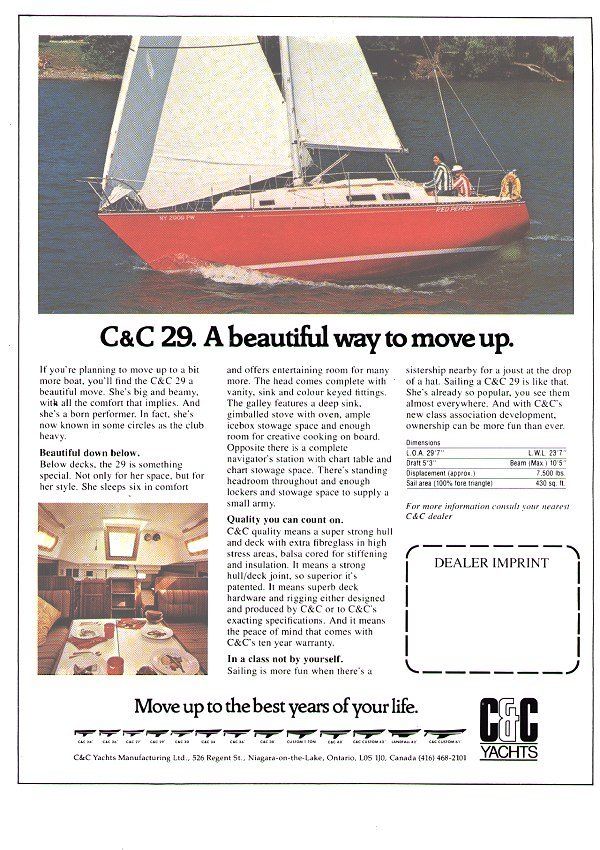

Boat Brochure

https://boatbrochure.com/products/c-c-29-brochureac?_pos=3&_sid=b572a2ebb&_ss=r

Hull Gilbert Model

1

Deck Gilbert Model

1

Notes

This model was introduced in 1977 and is sometimes referred to as the C&C 29-1 or Mark 1. It has a length overall of 29.58 ft (9.0 m), a waterline length of 23.58 ft (7.2 m), displaces 7,500 lb (3,402 kg) and carries 2,700 lb (1,225 kg) of ballast. The boat has a draft of 5.25 ft (1.60 m) with the standard keel and 4.0 ft (1.2 m) with the optional shoal draft keel. The boat is fitted with a Universal Atomic 4 gasoline engine of 30 hp (22 kW). The fuel tank holds 13 U.S. gallons (49 L; 11 imp gal) and the fresh water tank has a capacity of 20 U.S. gallons (76 L; 17 imp gal). The boat has a PHRF racing average handicap of 177 with a high of 191 and low of 172. It has a hull speed of 6.51 kn (12.06 km/h)

https://en.wikipedia.org/wiki/C%26C_29

Web Link

https://sailboatdata.com/sailboat/cc-29

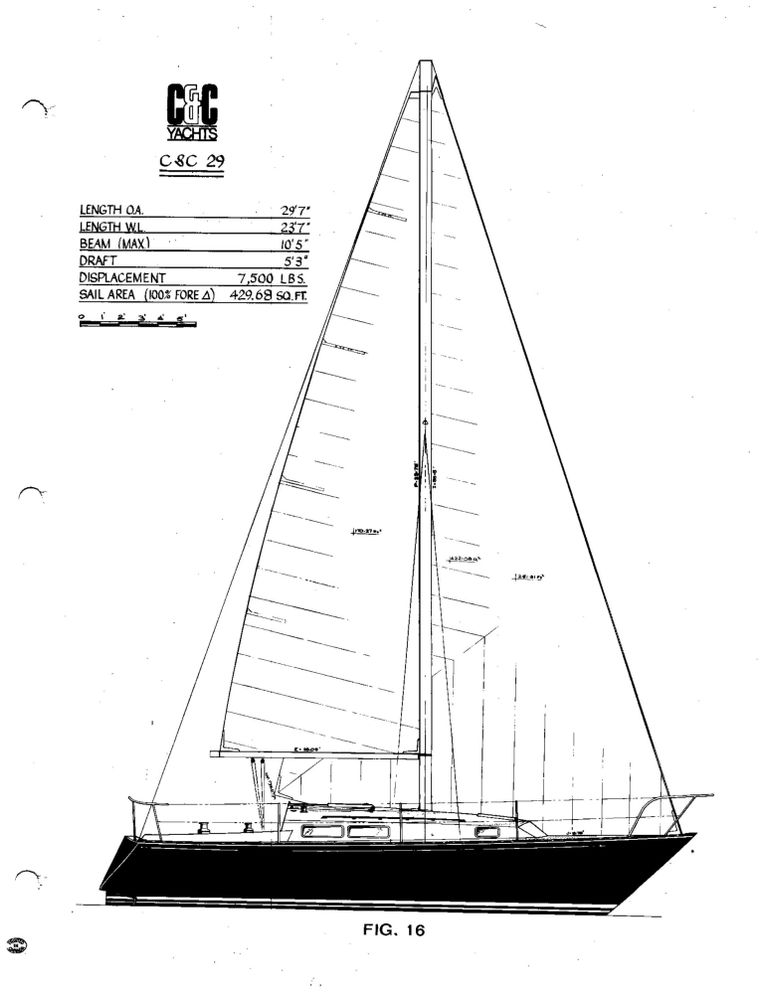

Sails Information

https://www.sailrite.com/C-C-29-Sail-Data

View more information and images in Airtable
